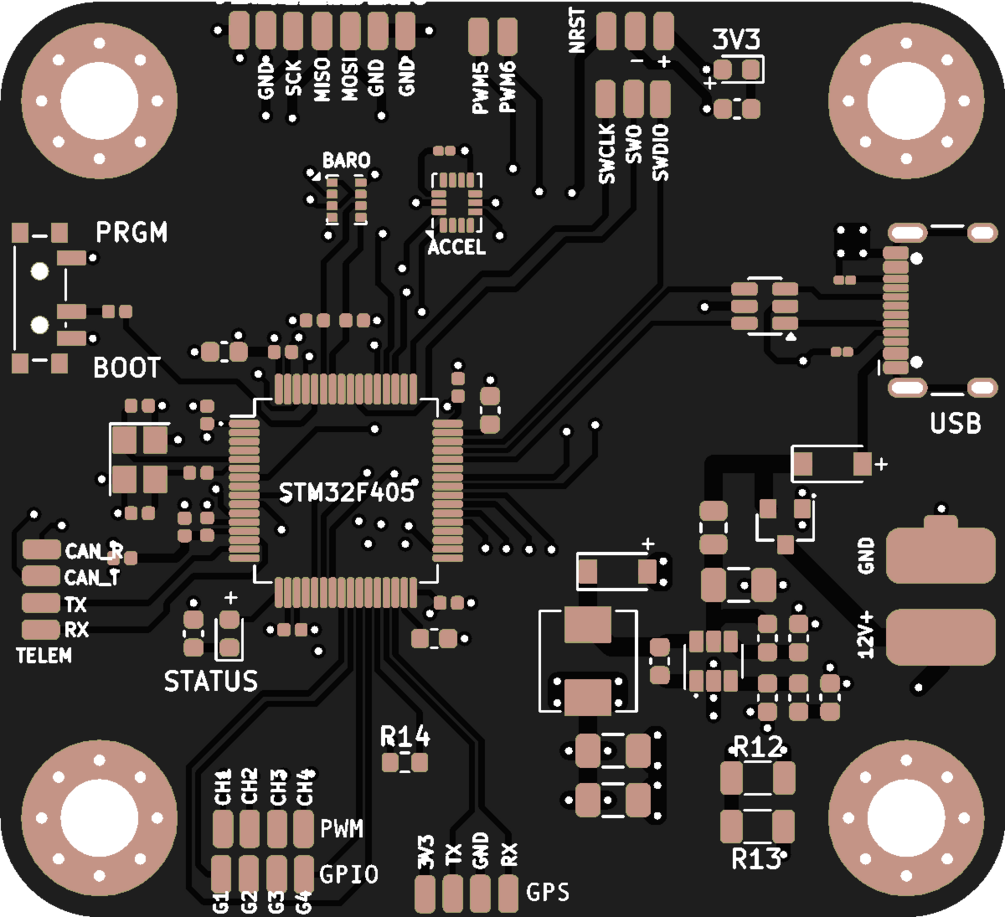

PCB Developpement Controller based STM32F405 (Barometer/Accel./CAN Bus/SPI expansion and much more!)

Designed for RC cars and much more:
a ready‑to‑build STM32F405 controller PCB + fabrication files (Gerbers/BOM/KiCad) — hardware only.

MCU
STM32F405RGT6

Interfaces & IO

• ADC input for battery voltage measurement
• 6× PWM outputs
• 1× UART for radio
• 1x Barometer (BMP280)
• 1x Accelerometer (ICM-42688-PC) => BetaFlight compatible
• 1× UART for GPS
• 1x CAN bus expansion
• 1x SPI expansion
• 4× GPIOs
• SWD interface
• USB-C interface
• SD card slot for logging


✔ PCB Gerber files
✔ BOM (with pricing estimates)
✔ KiCad project files
✔ SWD connection diagram
✔ Pinout reference
✔ No firmware only hardware
